OROFLEX WELL
Download Spec SheetFlexible PU well riser. Certified Potable Water according to Standard NSF-61.
- Well riser hose for installation of submersible pumps, wells, and water transfer.
- Standard length: Available up to 1,000 metres. Cut to size.
- Temperature: -40°C to +80°C / Standard NSF-61
| Item | Code | Ø (mm) | Loop | WP (bar) | Max. depth (m) |
|---|---|---|---|---|---|
| F559320A | 1941 | 32 | NO | 15 | 150 |
| F559299A | 1915 | 32 | YES | 30 | 300 |
| F559201A | 1908 | 52 (BP) | NO | 10 | 100 |
| F559364A | 1919 | 52 | YES | 26 | 260 |
| F558032A | 1920 | 76 | YES | 26 | 260 |
| F558063A | 1921 | 102 | YES | 26 | 250 |
| F558070A | 1937 | 127 | YES | 26 | 200 |
| F558075A | 1942 | 152 | YES | 26 | 200 |
Oroflex Well Connection Systems

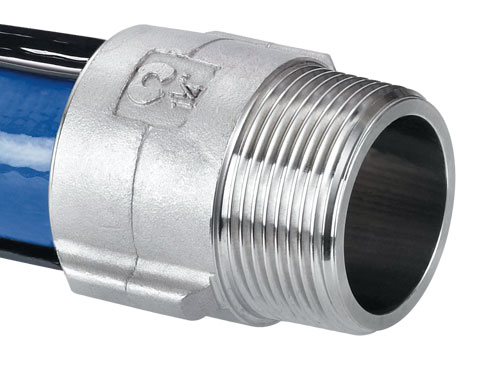

316 STAINLESS STEEL TERMINAL FOR EXPANSION
| Item | Code | Ø (mm) | Description |
|---|---|---|---|
| C653200 | 1TE32 | 32 | TERM EXPANSION GAS Ø1¼" |
316 STAINLESS STEEL CONICAL REMOVABLE COUPLING
| Item | Code | Ø (mm) | Description |
|---|---|---|---|
| C652995 | 1TC32 | 32 | TERM TP GAS Ø1¼" |
| C655034 | 2TCF | 52 | TERM TP CSV GAS Ø2" WITH FUSE |
| C652990 | 2TC | 52 | TERM TP SSV GAS Ø2" WITH PLUG |
| C655011 | 3TCF | 76 | TERM TP CSV GAS Ø3" WITH FUSE |
| C652300 | 3TC | 76 | TERM TP SSV GAS Ø3" WITH PLUG |
| C654822 | 4TCF | 102 | TERM TP CSV FUS GAS Ø4" WITH FUSE |
| C654823 | 4TCT | 102 | TERM TP CSV TAP GAS Ø4" WITH PLUG |
| C655023 | 5TCF | 127 | TERM TP CSV FUS GAS Ø5" WITH FUSE |
| C652355 | 5TCT | 127 | TERM TP CSV TAP GAS Ø5" WITH PLUG |
| C652363 | 6TCF | 152 | TERM TP c/SVAC FUS GASØ6" WITH FUSE |
| C652364 | 6TCT | 152 | TERM TP c/SVAC TAP GASØ6" WITH PLUG |
316 STAINLESS STEEL REMOVABLE CONICAL JOINT
| Item | Code | Ø (mm) | Description |
|---|---|---|---|
| C653390 | 2TCE | 52 | TERM TP SPLICE Ø2” |
| C653414 | 3TCE | 76 | TERM TP SPLICE Ø3” |
| C653418 | 4TCE | 102 | TERM TP SPLICE Ø4” |
| C653423 | 5TCE | 125 | TERM TP SPLICE Ø5” |
| C653419 | 6TCE | 152 | TERM TP SPLICE Ø6” |

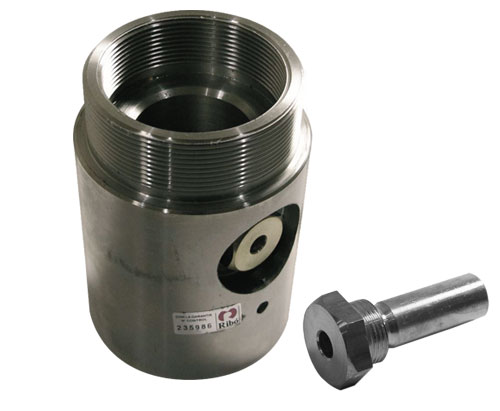

EMPTYING DEVICE FOR 1 1/4" HOSE
| Item | Code | Ø (mm) | Description |
|---|---|---|---|
| C654990 | 5499 | 32 | OROFLEX WELL BUSHING c/SVAC Ø1¼” |
| C654330 | 1CFUS | 32 | OROFLEX WELL FUSE SIST VAC ¼” |

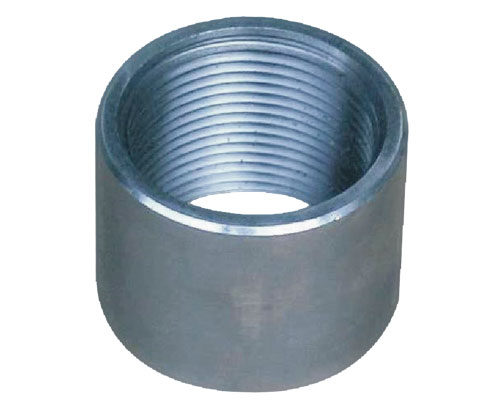

CONNECTOR SLEEVES
| Item | Code | Ø (mm) | Description |
|---|---|---|---|
| C680247 | 80247 | 32 | OROFLEX WELL CONNECTOR SLEEVE Ø1¼” |
| C680248 | 80248 | 52 | OROFLEX WELL CONNECTOR SLEEVE Ø2” |
