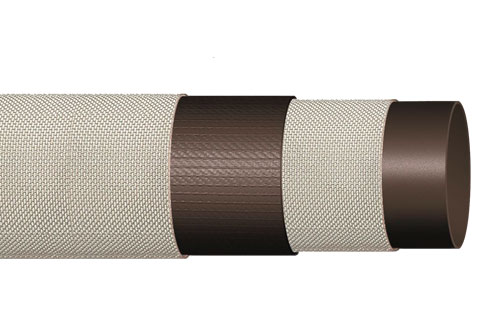

OROFLEX PRO
Flexible Rubber well riser with double polyester textile reinforcement.
- Well riser hose for installation of submersible pumps, wells, and water transfer.
- Standard length: Available up to 200 metres. Cut to size.
- Temperature: -20°C to +80°C
| Item | Code | Ø (in.) | WP (bar) | Max. depth (m) |
|---|---|---|---|---|
| F231000A | 1901 | 2" | 30 | 300 |
| F231000A* | 1901R | 2" | 40 | 350 |
| F559108A | 1902 | 3" | 25 | 250 |
| F559108A* | 1902R | 3" | 40 | 350 |
| F551693A | 1903 | 4" | 21 | 200 |
| F551729A | 1904 | 5" | 21 | 200 |
| F551730A | 1905 | 6" | 21 | 200 |
| F551731A | 1910 | 8" | 16 | 150 |
Oroflex Pro Connection Systems

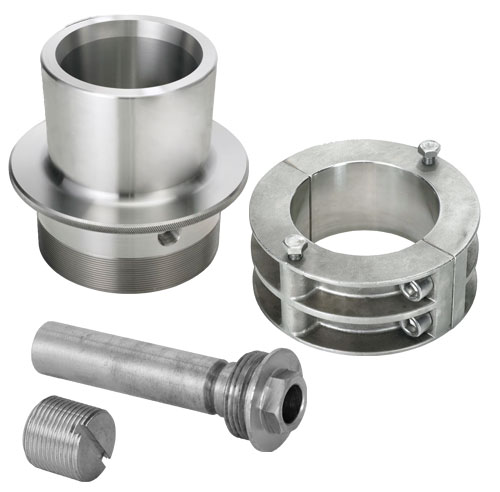

316 STAINLESS STEEL CONICAL REMOVABLE COUPLING
| Item | Code | Ø | Description |
|---|---|---|---|
| C655032 | 2PCF | 2" | TERM PR CSV GAS Ø2" WITH FUSE |
| C653000 | 2PC | 2" | TERM PR SSV GAS Ø2" WITH PLUG |
| C654264 | 3PCF | 3" | TERM PR CSV GAS Ø3" WITH FUSE |
| C653010 | 3PC | 3" | TERM PR SSV GAS Ø3" WITH PLUG |
| C654824 | 4PCF | 4" | TERM PR CSV FUS GAS Ø4" WITH FUSE |
| C654825 | 4PCT | 4" | TERM PR CSV TAP GAS Ø4" WITH PLUG |
| C655020 | 5PCF | 5" | TERM PR CSV FUS GAS Ø5" WITH FUSE |
| C652312 | 5PCT | 5" | TERM PR CSV TAP GAS Ø5" WITH PLUG |
| C655121 | 6PCF | 6" | NEW OROFLEX WELL TERM FUS GASØ6" WITH FUSE |
| C655122 | 6PCT | 6" | NEW OROFLEX WELL TERM TAP GASØ6" WITH PLUG |
| C650080 | 5306F | 6" | TERM PR CSV FUS GAS Ø6" Max. 100 Mt. WITH FUSE |
| C653060 | 5306 | 6" | TERM PR CSV TAP GAS Ø6" Max. 100 Mt. WITH PLUG |
| C655103 | 8PCF | 8" | TERM PR CSV FUS NPT Ø8" WITH FUSE |
| C655104 | 8PCT | 8" | TERM PR CSV TAP NPT Ø8" WITH PLUG |

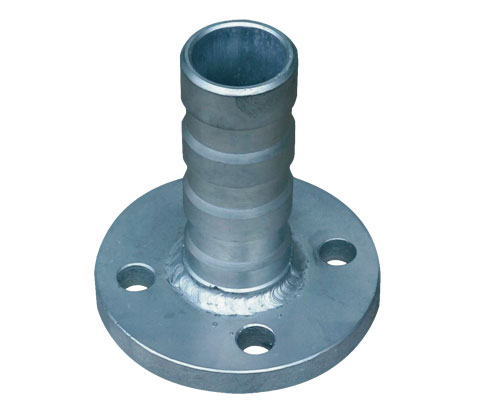

GALVANIZED IRON TERMINAL WITH FLANGE
| Item | Code | Ø | Description |
|---|---|---|---|
| C653802 | 5379 | 2" | OROFLEX WELL A.G.PLET/SOLD HIL.2” |
| C653800 | 5380 | 3" | OROFLEX WELL A.G.PLET/SOLD HIL.3” |
| C653810 | 5381 | 4" | OROFLEX WELL A.G.PLET/SOLD HIL 4” |
| C653820 | 5382 | 5" | OROFLEX WELL A.G.PLET/SOLD HIL 5” |
| C653829 | 5383 | 6" | OROFLEX WELL SS PLET/SOLD HIL 6” |

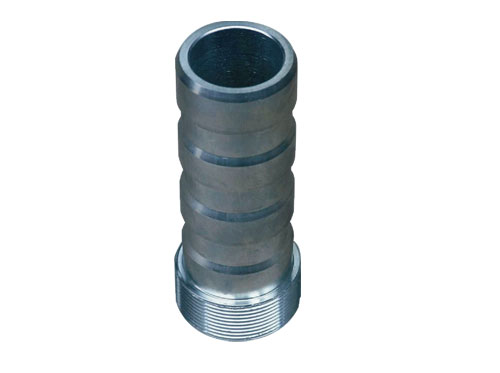

GALVANIZED IRON TERMINAL WITH EXTERNAL THREAD
| Item | Code | Ø | Description |
|---|---|---|---|
| C653700 | 5370 | 2" | OROFLEX WELL A.G.THREAD HIL 2” |
| C653710 | 5371 | 3" | OROFLEX WELL A.G.THREAD HIL 3” |
| C653720 | 5372 | 4" | OROFLEX WELL A.G.THREAD HIL 4” |
| C653730 | 5373 | 5" | OROFLEX WELL A.G.THREAD HIL 5” |
| C675270 | 75270 | 6" | OROFLEX WELL A.G.THREAD HIL 6” |

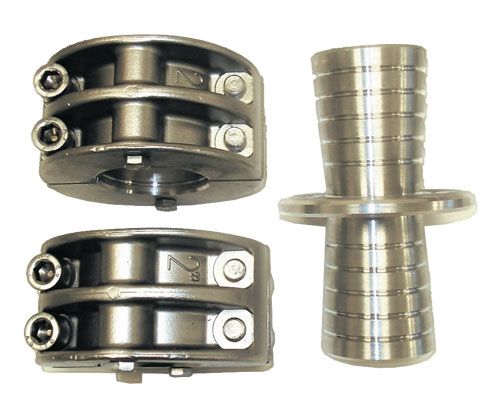

316 STAINLESS STEEL REMOVABLE CONICAL JOINT
| Item | Code | Ø | Description |
|---|---|---|---|
| C653400 | 2PCE | 2" | TERM PR SPLICE Ø2" |
| C653410 | 3PCE | 3" | TERM PR SPLICE Ø3" |
| C653420 | 4PCE | 4" | TERM PR SPLICE Ø4" |
| C653430 | 5PCE | 5" | TERM PR SPLICE Ø5" |
| - | 6PCE | 6" | TERM PR SPLICE Ø6" |
