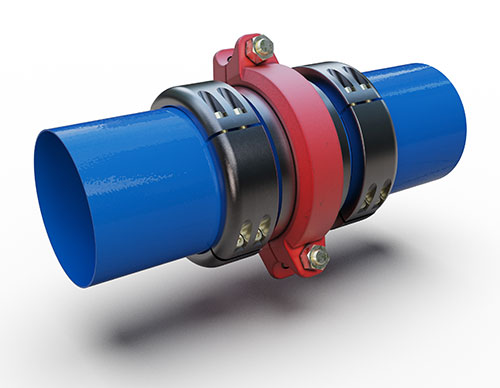

OROFLEX RELINE

Download Spec Sheet

Extruded TPU Lay Flat Hose for Pipe Rehabilitation

  • Specially designed for drinking water transfer in trenchless pipe network repair. Total corrosion resistance and ease of transportation and handling. Premium flexible leak free hose adaptable to the pipe nominal diameter and fully approved for potable water NSF/ANSI/CAN Standard 61 Certified and BS 6920:2014 Compliant.
  • Lengths: Standard lengths in 660ft (200m). Longer lengths may be available upon request.
  • Temperature: From -58°F (-50°C) to 150°F (65°C), with peaks of up to 175°F (80°C). Special versions for higher and lower temperatures available upon request.
  • Color: Blue cover is the standard. Other colors are available upon request.
Nominal
Pipe Size
OROFLEX® RELINE Hose Properties
Part Number Inner Diameter Wall Thickness Working Pressure Burst Pressure Tensile Strength Nominal Weight
mm inch mm inch mm inch bar psi bar psi kg lb kg/m lb/ft
125 5 F550170A 92 3 1/2 3,9 0,154 17 245 42 600 13.000 28.600 1,45 0,97
150 6 F550171A 116 4 1/2 3,9 0,154 16 230 35 500 18.000 39.700 1,60 1,08
200 8 F550172A 152 6 4,5 0,177 22 320 55 800 29.000 63.900 2,48 1,66
250 10 F550173A 203 8 4,3 0,169 16 230 42 600 35.000 77.200 3,30 2,22
300 12 F550174A 254 10 4,5 0,177 16 230 35 500 45.000 99.200 4,10 2,80
400 16 F550175A 305 12 5,0 0,197 16 230 35 500 70.000 154.300 5,28 3,55
500 20 F550176A 406 16 5,2 0,205 14 215 28 400 80.000 176.400 7,60 5,11



Nominal
Pipe Size
OROFLEX® RELINE Hose Properties
Part Number Inner Diameter External Diameter
at 0,7bar at 10psi at 10bar at 145psi at 12bar at 175psi at 14bar at 200psi at 16bar at 230psi
mm inch mm inch mm inch mm inch mm inch mm inch mm inch
125 5 F550170A 92 3 1/2 100 4 114 4 1/2 116 4 1/2 119 4 3/4 120 4 3/4
150 6 F550171A 116 4 1/2 125 5 145 5 3/4 146 5 3/4 148 5 3/4 150 6,00
200 8 F550172A 152 6 161 6 3/8 176 7 178 7 181 7 1/8 183 7 1/4
250 10 F550173A 203 8 215 8 1/2 224 9 226 9 228 9 230 9,01
300 12 F550174A 254 10 266 10 1/2 284 11 1/4 290 11 1/2 295 11 1/2 297 11 3/4
400 16 F550175A 305 12 315 12 1/2 345 13 1/2 352 14 358 14 1/4 360 14 1/4
500 20 F550176A 406 16 413 16 1/4 460 18 475 18 5/8 479 19 484 19,00
